  • Simulator Pictures

    Post pictures of your Protee golf simulator room or setup.

  • #2
    I can post a picture of my Optishot box :whistle:

    Comment


    • #3

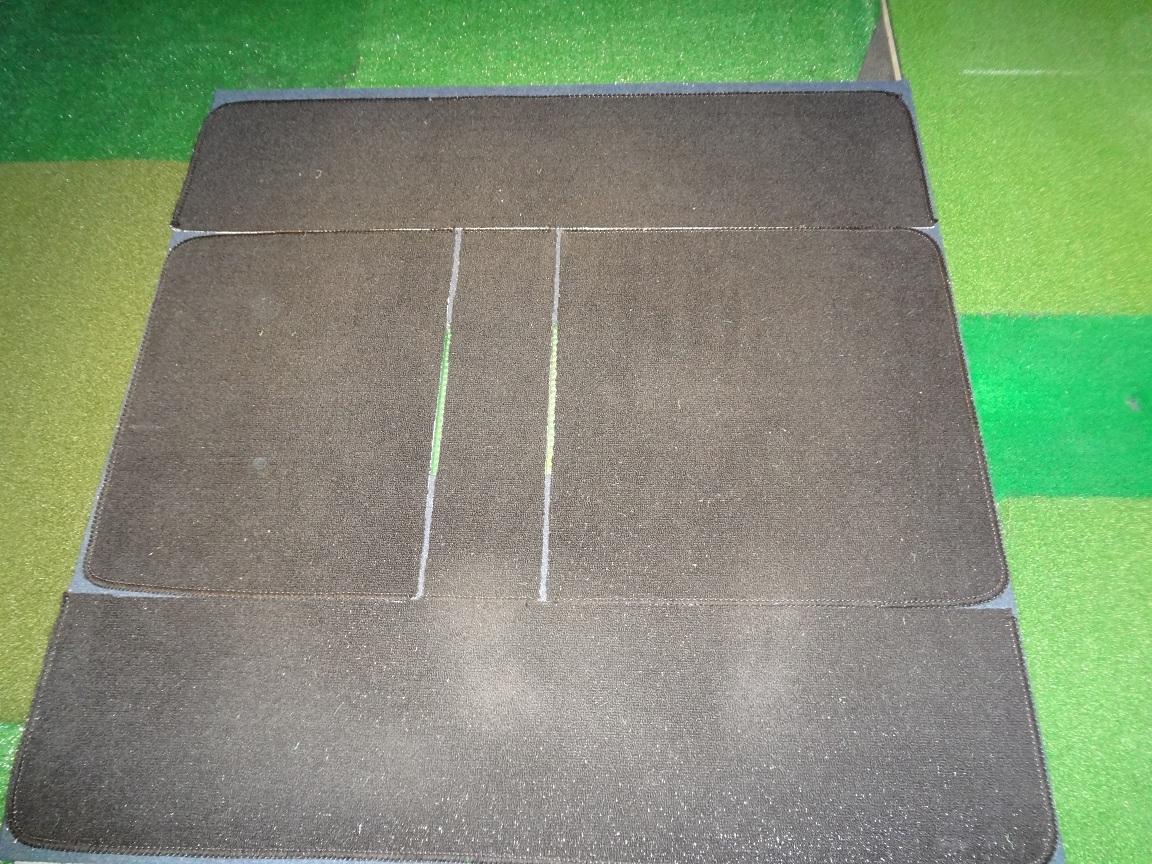

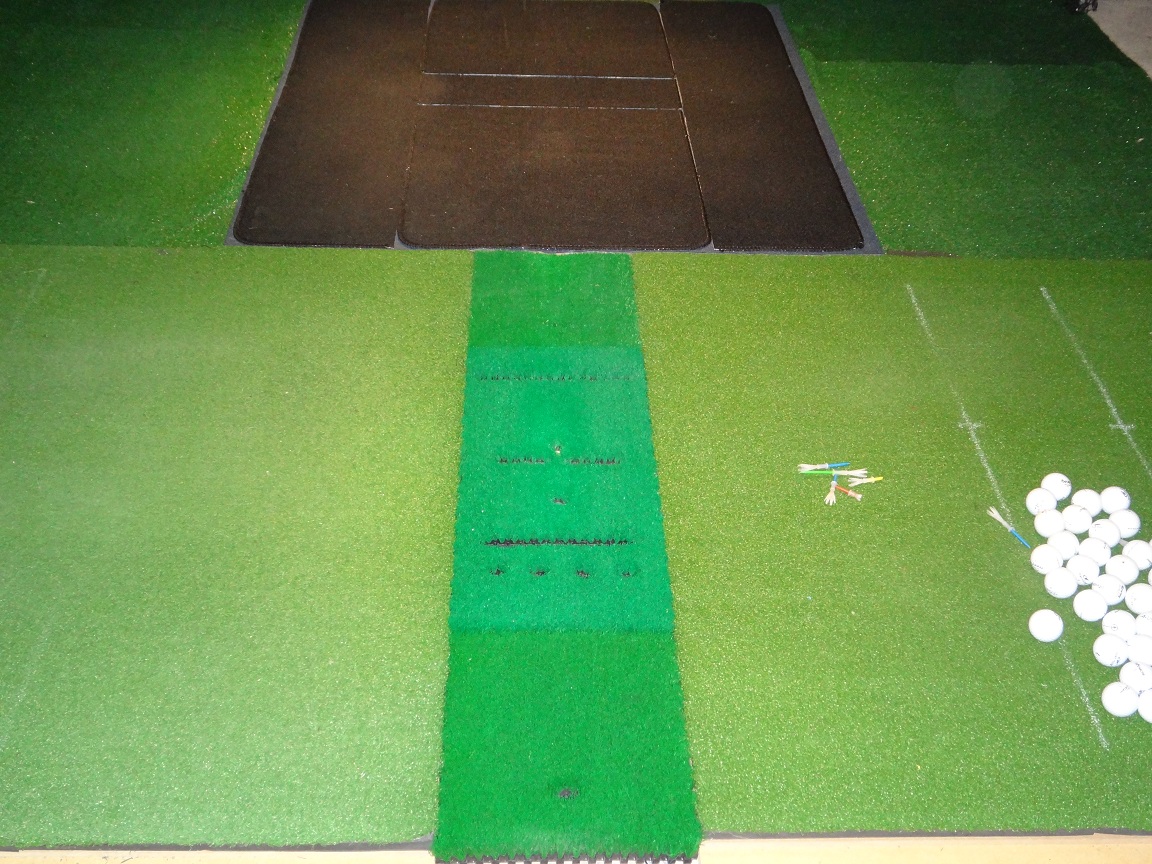

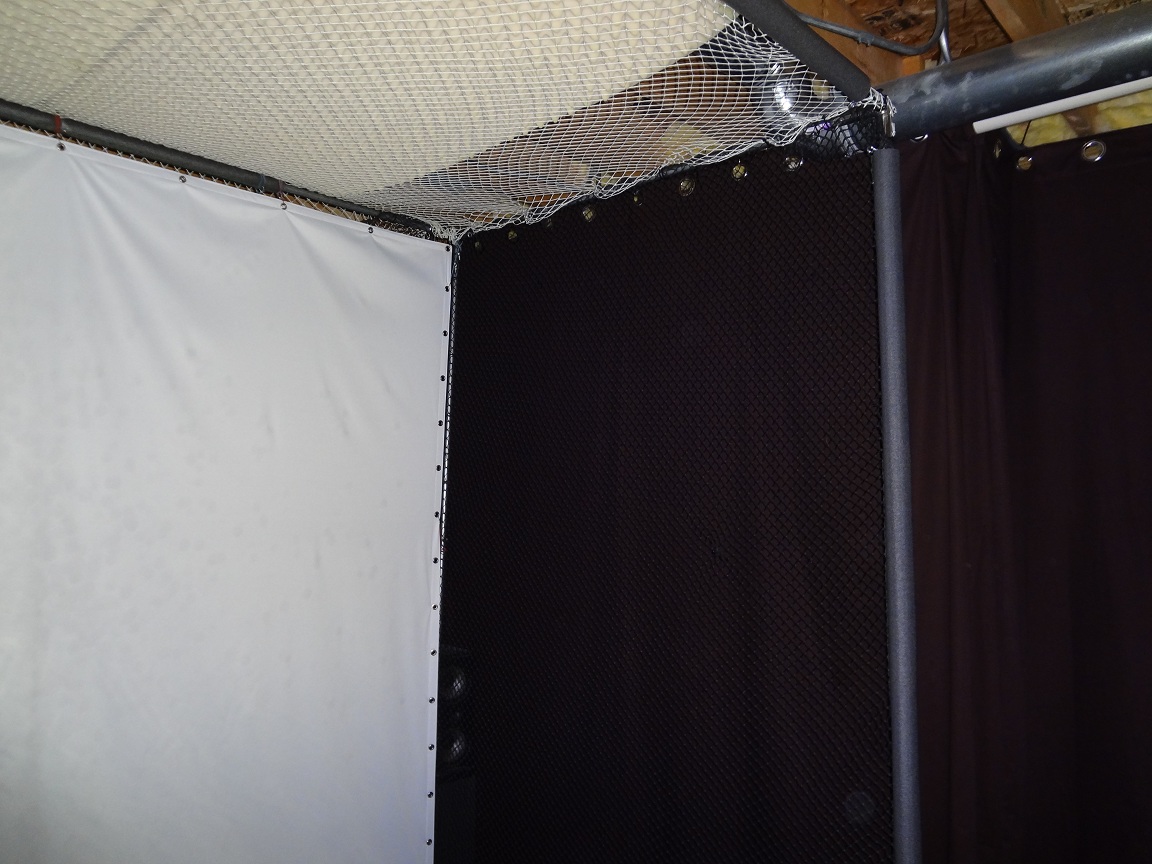

      Some pics of my ghetto basement setup. I'm just too busy to finish the basement. I built a simple 10x8x5 cage using corner fittings I got from Ebay. I will post a link later. The frame is made of 3/4" electrical conduit from Homedepot. Nets from Ebay. Screen is Protee. The cage and net cost me around $120 total. Let me if you have any questions.

      Click image for larger version

Name:	mat1.jpg
Views:	131
Size:	430.1 KB
ID:	13124

      Click image for larger version

Name:	mat2.jpg
Views:	125
Size:	479.9 KB
ID:	13125

      Click image for larger version

Name:	putting1.jpg
Views:	122
Size:	498.0 KB
ID:	13126

      Click image for larger version

Name:	screen3.jpg
Views:	128
Size:	261.1 KB
ID:	13127
      Last edited by Vance; 09-19-2014, 03:17 AM.

      Comment


      • #4
        cool. I will have to post some of my shots.
        GC2 Eastern Time Zone, USA

        Comment


        • #5
          I love the black curtain and the theater seats. How much distance between where you are hitting and the screen? Did you use pipe insulation on the frame? Also, what is your screen attached with? I have to say I love the setup.

          Comment


          • #6
            Thank you. Screen is attached with short 8 inch bungee cords. Pipe insulation around conduit. 3 inch mattress foam sitting on top net. Works awesome on high wedge shots. Sensor mat my is about 11 feet from screen.

            Comment


            • #7
              Where do you have your projector mounted?

              Do you get any bounce back from your screen?

              Comment


              • #8
                Projector is mounted about 14 feet back I think. No bounce back at all. Some wedge shots can hit off the foam at a certain angle will spin back off the screen and roll back towards the golfer. No big deal.

                Comment


                • #9
                  Here is my garage set up. Not pretty but not too bad either. Sorry I couldn't figure out how to get my pics to show up as thumbs. My net is attached directly to the ceiling with grommets on eye bolts. Wouldn't recommend this as they are starting to wear from the stress because its impossible to get them lined up perfectly. Will have to replace the when they finally tear. Other than that this set up works pretty well.

                  Last edited by Vance; 09-18-2014, 02:18 AM.

                  Comment


                  • #10
                    V-cam and model golf face on cam

                    Last edited by Vance; 09-18-2014, 02:19 AM.

                    Comment


                    • #11
                      Protee computer and v-cam backdrop
                      Last edited by Vance; 09-18-2014, 02:24 AM.

                      Comment


                      • #12
                        ProTee lights



                        Last edited by Vance; 09-18-2014, 11:13 PM.

                        Comment


                        • #13
                          Thanks for sharing jeremiah. Looks good to me as long as it works. How far your is putting sensor from the screen? Do you get any shadows from your head when putting?

                          Thanks

                          Comment


                          • #14
                            I do get some shadow on the screen from putting and even my full swing. I put my projector as far back as I could because I like the big picture and don't really mind (or notice) the shadow. The putting sensor is about 4.5 feet from the screen.

                            Comment


                            • #15
                              Couldn't really tell from those pictures but you must have some protection on the garage door rail that is in front of the screen?

                              Comment
