Has anyone found a way to test calibration? I feel like mine is off, but when I recalibrate it’s off worse!
-
-

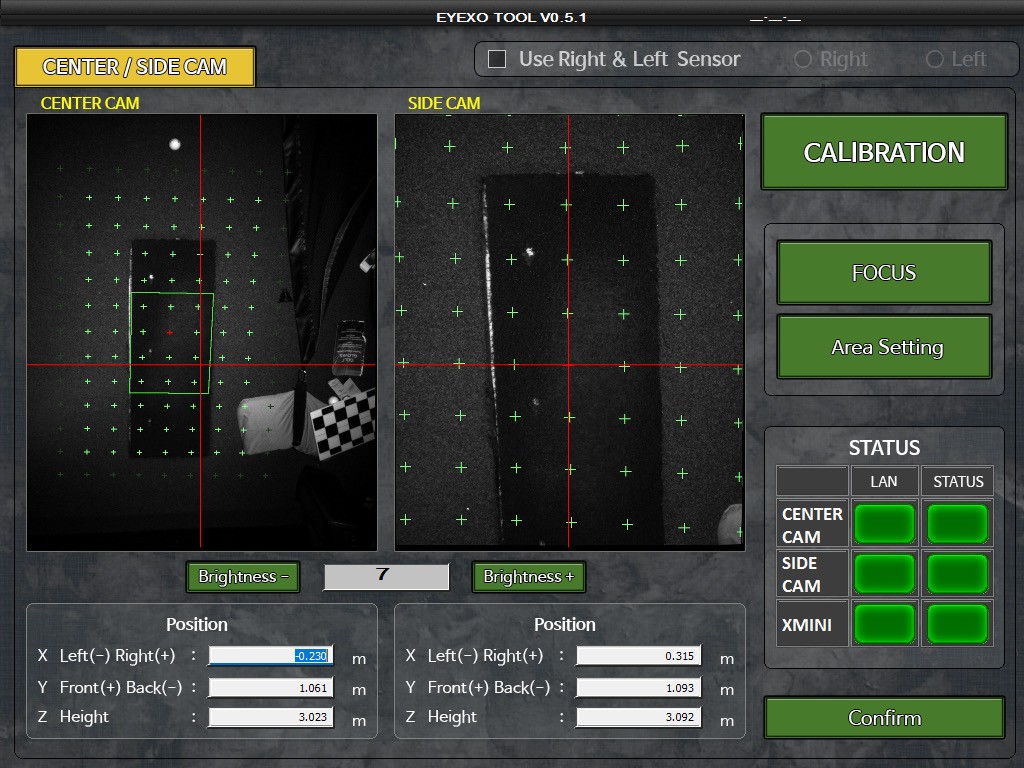

Can you post some screenshots of your calibration page with the board lined up and ready to hit calibrate? Specifically the X,Y, and Z height axis measurements? You should be aligning it with the side cam.
-
-
Everything looks good. When you say it’s feels off what do you mean by “off”. Is there a symptom you are experiencing?Comment
-
It feels like it has a left bias on shots. I look at the crosses and wonder if those are slightly right (I assume they should be straight). I had it calibrated for months with a more right bias (not on purpose). The calibration is just tough and I have a buddy bringing over a track man to compare so I want to make sure it’s spot on to compare
-
-
It’s always a good idea to reference with another LM just make sure you set them up calibrated to each other.
I did this with my Mevo + and the EYEXO. When you align the Trackman to the Uneekor make sure you have the tool up with the board down in the correct position. The board is telling the Uneekor where the target line is so as long you align the Trackman to the board you should be good. Don’t just setup the Trackman at what you think center of the screen should be. I used a laser line level to show where the board was pointing at the screen then aimed the radar at the laser line.
What you pictured looks ok though. It’s a weird viewing angle with the cameras but your plus marks are very perpendicular to the edges of your hitting mat. Also your X,Y, an Z values are very close meaning the unit is level in addition to being within a recommended height range with Z axis above 2.7m.
If you want post some of your shot data and we can see if something looks off with that data as well. Make sure to include shots you think are not reading correctly.Comment
