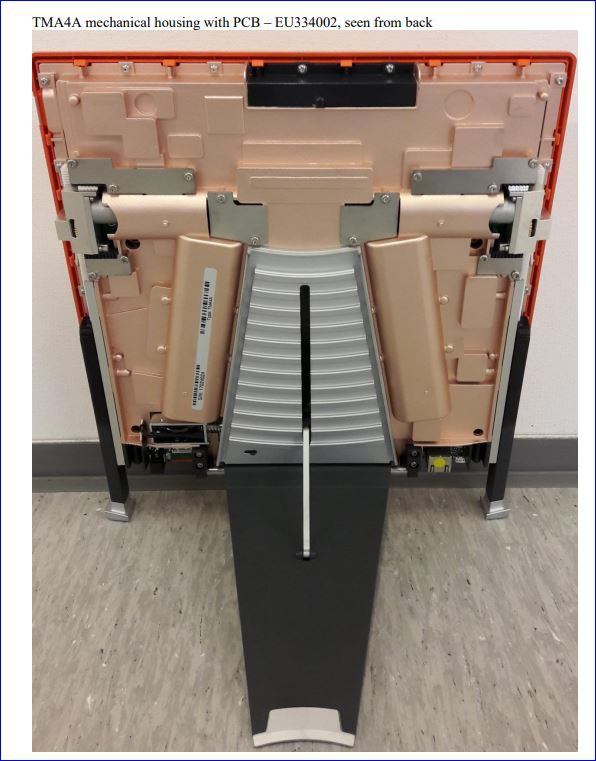

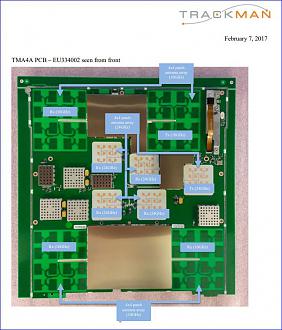

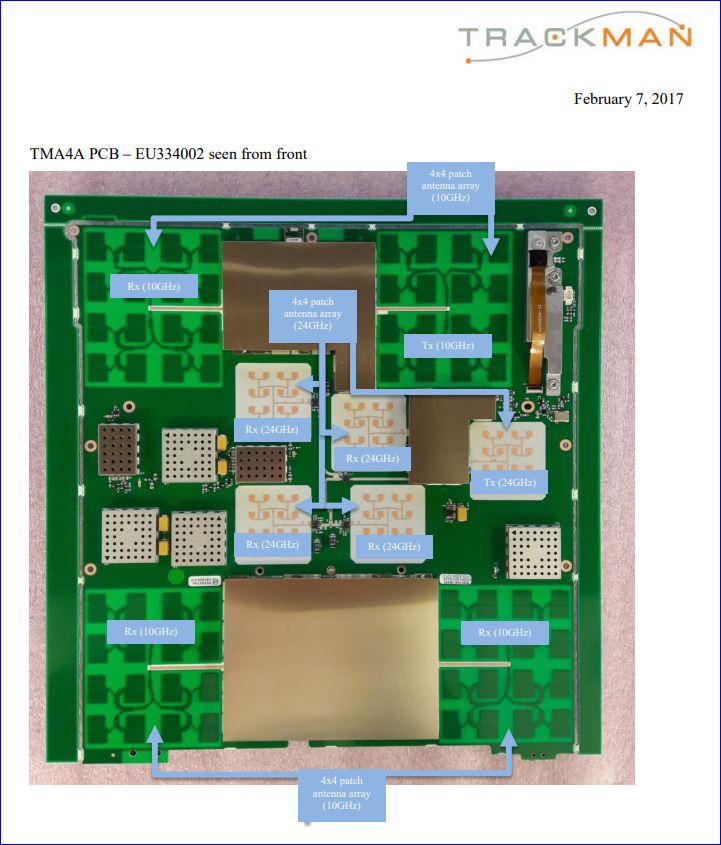

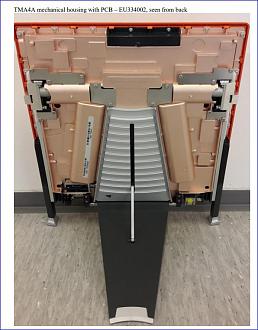

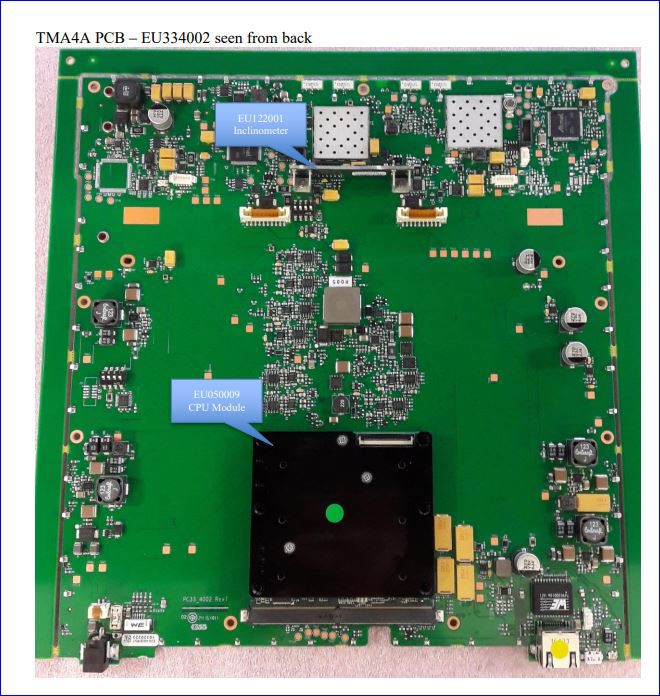

For those curious about what the inside of a Trackman 4 look like there are internal pictures posted on the FCC website. In the second picture, you can see the dual radar. The 4 10GHZ arrays are for long-range ball tracking and the 5 smaller 24GHz arrays are higher resolution radar for short-range, putting, club and impact data. The ones labeled Tx transmit the radar while the ones labeled Rx are the receivers.

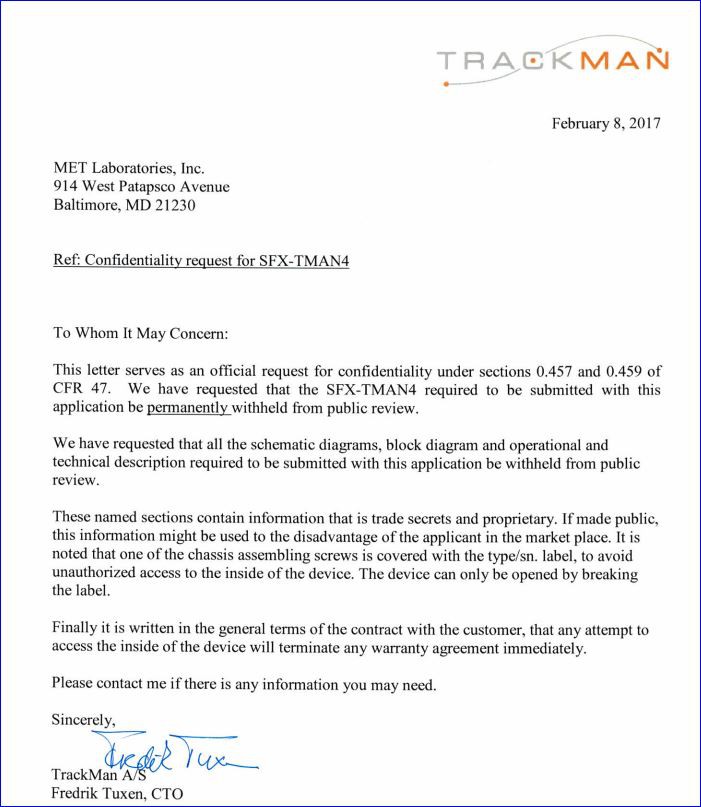

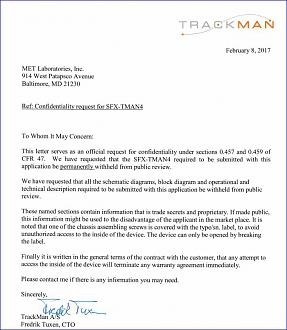

Per the confidentiality request, these internal pictures are considered public.
Per the confidentiality request, these internal pictures are considered public.
